1. Product Description


Last update: July 8th, 2025.

1.1. Purpose and Description​

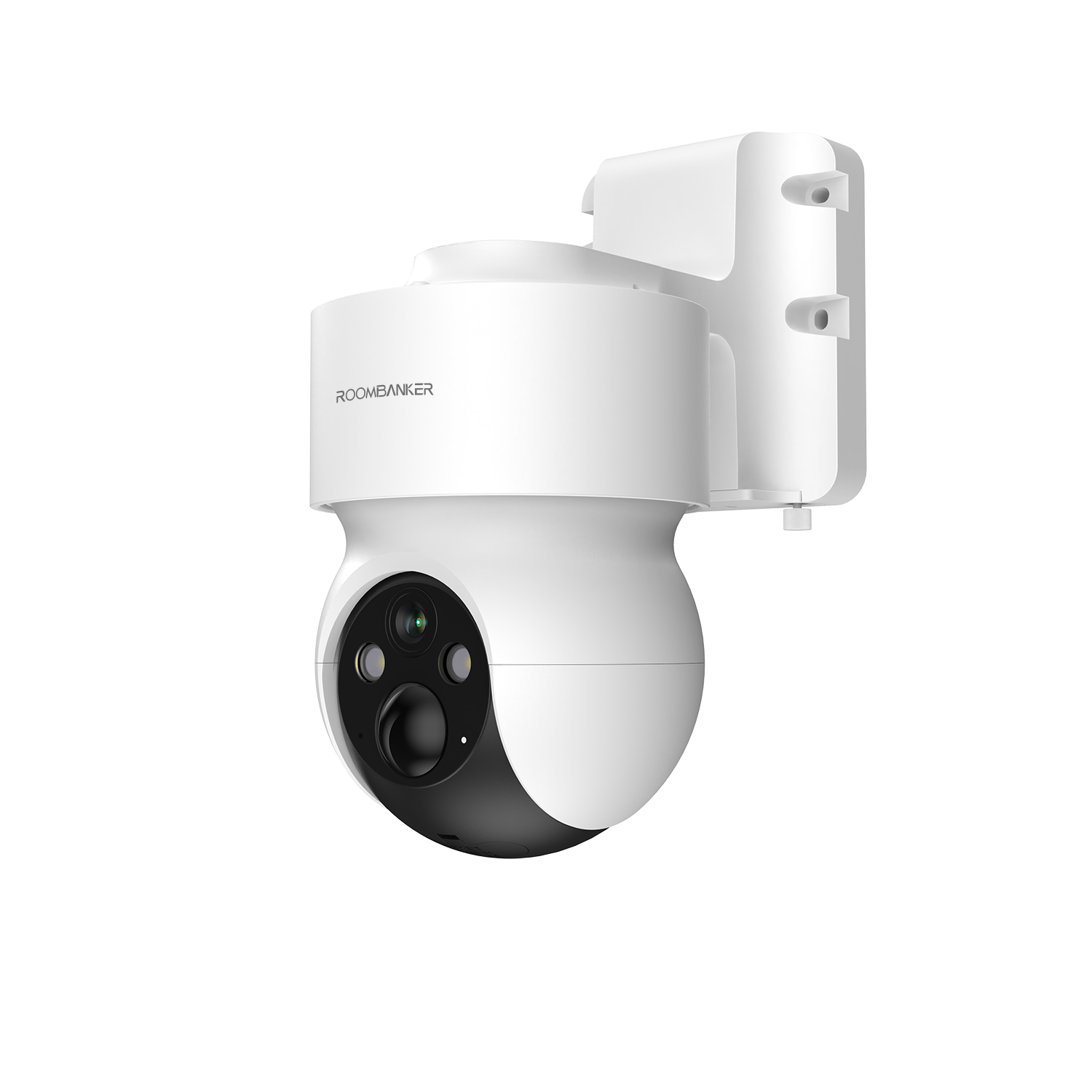

The RBVD-OC1-M5 is an outdoor 5MP Wi-Fi camera developed by Roombanker, featuring two-way communication and human detection tracking capabilities. When used with the Roombanker Smart Security System, it enables alarm video verification and various video linkage functions.

1.2. Product Feature Summary​

  • Color night vision
  • Light && sound alarm
  • Rechargeable batteries
  • Support powered by solar panel
  • Pan/Tilt rotation
  • PIR with AI human-body detection
  • IP65 weatherproof
  • Support TF card (up to 128GB)
  • Support OTA

2. Specification

Technical Specification

2.1. Camera​

ParameterValue
Image Sensor1/2.7'' 5Megapixel CMOS
Effective Pixels2592(H) x 1944(V)
Shutter1/20 ~ 1/10,000s
Min. IlluminationColor 0.1Lux@F2.0,Black/White 0.01Lux@F2.0
IR DistanceNight visibility up to 30m
Day/NightAuto(ICR)/Color/B&W
WDRDWDR
Lens&FOV(H/V/D)3.6mm@F2.0, 100°/55°/120°

2.2. Video&Audio​

ParameterValue
CompressionH.265
Bit Rate32Kbps ~ 2Mbps
Frame Rate1 ~ 25fps
Dual StreamYes
Audio Input/OutputBuilt-in mic/speaker

2.3. Network​

ParameterValue
Alarm TriggerIntelligent motion detection
Wireless Security64/128-bit WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
Communication ProtocolHTTP, DHCP, DNS, TCP/IP
Interface ProtocolPrivate
Wireless2.4GHz Wi-Fi (IEEE802.11b/g/n/ax)
Mobile Phone OSiOS 9 or later, Android 5 or later
SecurityAES128

2.4. Battery&PIR​

ParameterValue
Capacity9600mAh rechargeable Li batteries
Stand-by Current150~250mA (IR off)
Working CurrentHTTP, DHCP, DNS, TCP/IP
Stand-by Time6 months
Working Time1.5-3 months (varies based on settings, usage & temperature)
PIR Detection Range10m
PIR Angle120°

2.5. General​

ParameterValue
Pan/TiltPan: 0° ~ 350°, tilt: -90° ~ 30°
Operating Temperature-10 °C to 50 °C
IP RatingIP65
Power SupplyDC 5V/1A(Type-C)
Power ConsumptionUp to 4.0W
Power ConsumptionUp to 4.0W
Optional AccessorySolar panel
StorageTF card(Up to 256GB)
Dimensionsφ158 × 103 × 200mm
Net Weight730g

3. Compatibility

Operates with all Roombanker Home Security Hubs, Can also work independently

4. Complete set

NameQuantity
Camera1
Mounting Screw +Plastic expansion3
Charging cable1
QSG1
Solar Panel1

5. Additional information

5.1. Available models​

  • RBVD-OC1-M5

5.2. Certifications and test standard​

Information DescriptionStandard(Yes) custom(No)
ESD TestingYes
Environmental TestingYes
Reliability TestingYes
Factory certificationsISO9001/IOS14001/BSCI
Device certificationsFCC/CE/RoHS

6. Warranty

Replacement and repair within 24 months of the date of sale.
