Transmitter

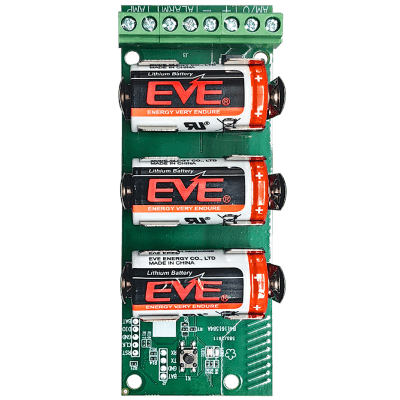

Tramsmitter is a module for integrating a third-party wired device into the Roombanker system. Transmitter allows you to connect the detectors, keypad, panic button, or any other device with the NC/NO contact type to Roombanker. Tramsmitter can output the NC/NO signal to the third-party device.
1. Terminals for wired device connection
Terminals for wired device connection
| Param | Description |
|---|---|
| + - | 3.3V⎓ power supply output for connecting a wired device. |
| AO+ AO- | Outputs for connecting a wired device. |
| ALARM | Inputs for connecting a wired device. |
| TAMP | Inputs for connecting a tamper of a wired device. |
Output contact states
- NO, NC
Third-party device contact states
- NO, NC
Tamper contact states
- NO, NC
Cable length
- Up to 130 m
Operating modes
- Bistable, Pulse
Event types
| No. | Type | Name |
|---|---|---|
| 1 | Event | Tamper |
| 2 | Device | Intrusion |
| 3 | Device | Fire |
| 4 | Device | Auxiliary alarm |
| 5 | Device | Panic button |
| 6 | Device | Gas alarm |
| 7 | Device | Leakage |
| 8 | Device | Glass break |
| 9 | Device | High temperature |
| 10 | Device | Low temperature |
| 11 | Device | Masking |
| 12 | Device | Duress code (opening) |
| 13 | Device | Vibration (seismic sensor) |
| 14 | Device | Custom |
2. Features
Remote setting and testing
Setting and testing from RB Link App
Advanced features
Power up enrolling When device is powered up, it will automatically start paring to the hub nearby
Find me When enabled, the device starts flashing green, which can help identify the sensor from numerous devices.
Signal strength detection When enabled, senor starts flashing green/orange/red showing the wirelesssignal strength between the hub at current installation site.
Low battery notification
Indicators
- Alarm: Flashing Red
- Find me: Flashing Green
- Signal strength:
Flashing Green: signal strength is strong, and is recommended to install devicehere
Flashing orange: signal strength is medium and device can be installed here
Flashing Red : signal strength is bad or no signal, and device can not be installedhere
3. RBF wireless technology
Wireless signal range
- Up to 1,500 m in an open space with hub
- Two-way communication with hub
Frequency bands
- 868MHz version: 863 ~ 870 MHz
- 915MHz version: 902 ~ 928 MHz
- Depends on sales region.
Wireless signal modulation
- FSK/DSSS
Encrypted communication
- All the data transmitted are protected by AES-CCM encryption with a random key.
Frequency hopping (FHSS)
- To prevent radio interference and radio signal interception.
Time division multiple access (TDMA)
- With the help of clock synchronization technology, hub will slice time into differentdivision for different RBF wireless devices. In this way, all devices will communicatewith hub in a sequence.
4. Electrical characteristic
Power Supply
- CR123A Battery x 3
5. General
Operation Temperature
- From-20°Cto +65°C(-4°F to 149°F)
Operation Humidity
- up to 90%
Storage Temperature
- From -20°C to 65°C (-4°F to 149°F)
Dimensions
- 100mm x 41mm x 23mm
Weight
- 33g(No battery)
6. Compatibility
- Operates with all Roombanker Home Security Hubs, RBF repeaters.
7. Complete set
| Product | Quantity |
|---|---|
| Transmitter | x1 |
| Quick Start Guide | x1 |
8. Additional information
Available models
- RBAD-TR1-868
- RBAD-TR1-915
Certifications
- CE
- FCC
- ROHS
Warranty
Replacement and repair within 24 months of the date of sale. Batteries are not covered under warranty.
