1. Product Description


Last update: July 8th, 2025.

1.1. Purpose and Description​

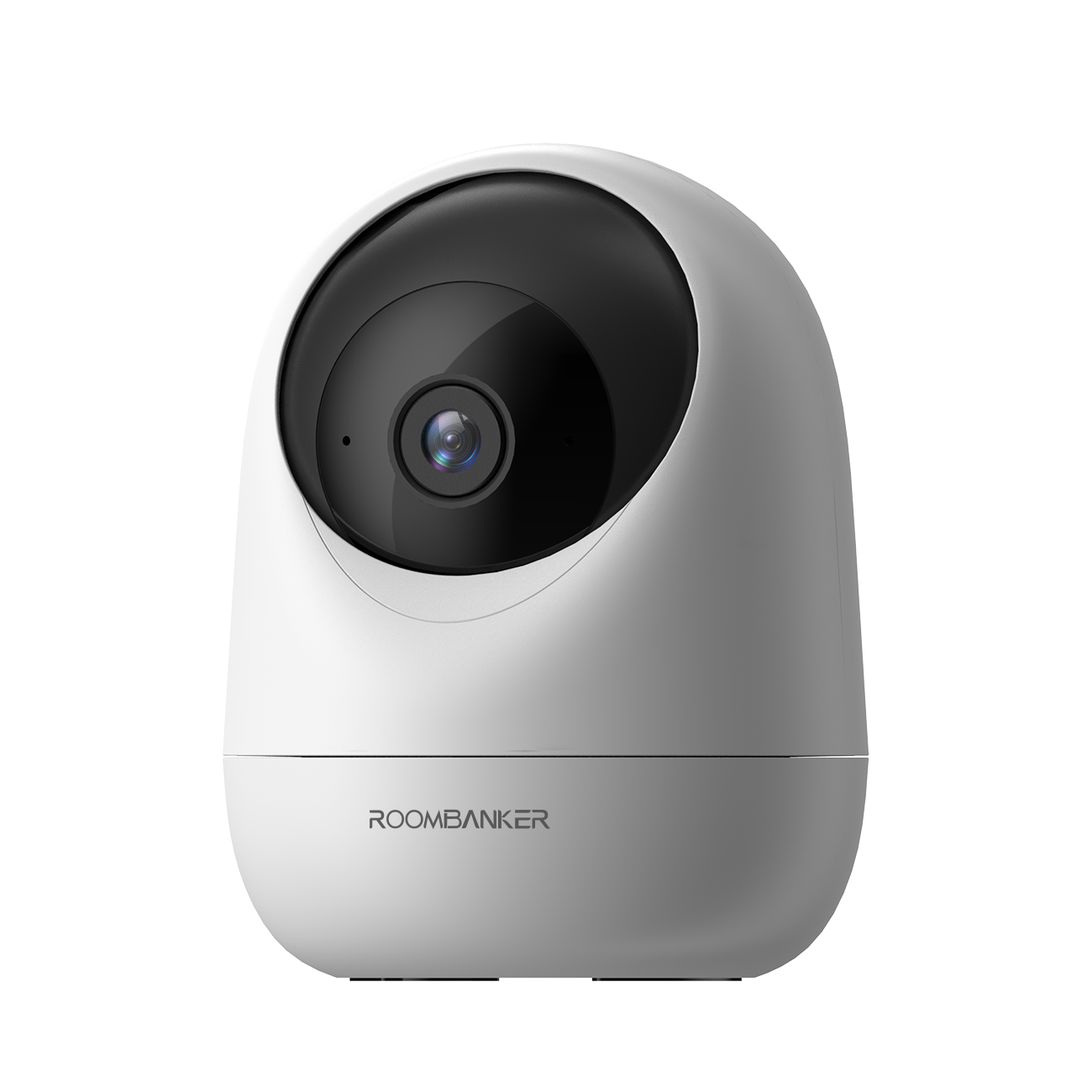

The RBVD-IC1-M4 is an indoor 4MP Wi-Fi camera developed by Roombanker, featuring two-way communication and human detection tracking capabilities. When used with the Roombanker Smart Security System, it enables alarm video verification and various video linkage functions.

1.2. Product Feature Summary​

  • Auto tracking
  • Intelligent motion/sound detection
  • Motion zone selection
  • Two-way audio (half duplex)
  • Night visibility up to 10m
  • Support TF card (up to 256GB)
  • Support WebRTC
  • Mode(Hidden lens to protect privacy)
  • Support OTA

2. Specification

Technical Specification

2.1. Camera​

ParameterValue
Image Sensor1/3.0'' 4Megapixel CMOS
Effective Pixels2560(H) x 1440(V)
Shutter1/20 ~ 1/10,000s
Min. IlluminationColor 0.1Lux@F2.0, Black/White 0.01Lux@F2.0
IR DistanceNight visibility up to 10m
Day/NightAuto(ICR)/Color/B&W
WDRDWDR
Lens&FOV(H/V/D)3.6mm@F2.0, 85°/45°/95°

2.2. Video&Audio​

ParameterValue
CompressionH.265
Bit Rate32Kbps ~ 2Mbps
Frame Rate1~20fps
Dual StreamYes
Audio Input/OutputBuilt-in mic/speaker

2.3. Network​

ParameterValue
Alarm TriggerIntelligent motion/sound detection
Wireless Security64/128-bit WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
Communication ProtocolHTTP, DHCP, DNS, TCP/IP, RTSP
Interface ProtocolPrivate
Wireless2.4GHz&5GHz Wi-Fi (IEEE802.11b/g/n/ax)
Mobile Phone OSiOS 9 or later, Android 5 or later
SecurityAES128

2.4. General​

ParameterValue
Pan/TiltPan: 0° ~ 350°, tilt: 50° ~ -45°
Operating Temperature-20 °C to 50 °C
Power SupplyDC 5V/1A
Power ConsumptionUp to 4.5W
StorageTF card(Up to 256GB)
Dimensionsφ82x106mm
Net Weight188g

3. Compatibility

Operates with all Roombanker Home Security Hubs, Can also work independently

4. Complete set

NameQuantity
Camera1
Bracket1
Mounting bracket+Screw3
Power Adapter1
Charging cable1
QSG1

5. Additional information

5.1. Available models​

  • RBVD-IC1-M4(US)
  • RBVD-IC1-M4(EU)

5.2. Certifications and test standard​

Information DescriptionStandard(Yes) custom(No)
ESD TestingYes
Environmental TestingYes
Reliability TestingYes
Factory certificationsISO9001/IOS14001/BSCI
Device certificationsFCC/CE/RoHS

6. Warranty

Replacement and repair within 24 months of the date of sale.
