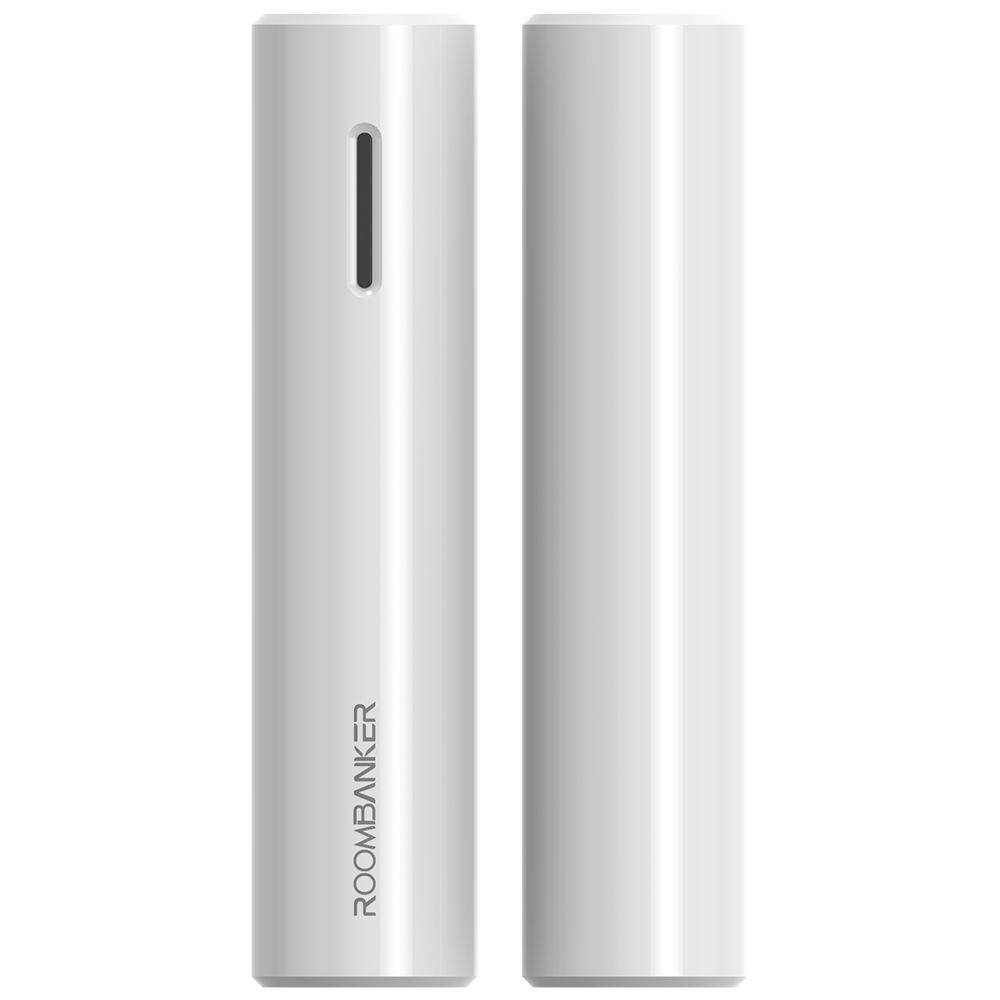

Door Window Sensor(Anti-masking)

Launching shortly. Anticipation awaits!

Door window detector is designed to detect intrusion, offering comprehensive coverage for doors, windows, skylights. The detector has two reed switches as opening sensors and a magnetometer that recognizes magnet spoofing. The device also detects shock and tilt with a built-in accelerometer.

1. Detection Performance​

Detection method​

  • Reed switch*2
  • Accelerometer
  • Magnetic sensor

Detection Gap​

  • 17 mm

2. Features​

Door Status detection​

  • Door open

    Alarm will be triggered when system is armed, ignores vibrations lasting up to 0.15 s.

  • Shock

    3 levels, Low/Normal/High, alarm will be triggered when detects a shock.

  • Tilt

    Tile threshold can be set from 5° to 25°, once angle exceeds the threshold, alarm will be triggered when system is armed.

Indicators​

  • Alarm: Flashing Red
  • Find me: Flashing Green
  • Signal strength:
    • Flashing Green: signal strength is strong, and is recommended to install device here
    • Flashing Orange: signal strength is medium and device can be installed here
    • Flashing Red: signal strength is bad or no signal, and device can not be installed here

Anti-masking​

  • Magnetic masking sensor

    Alarm will be triggered when system is armed.

Anti-masking testing​

  • Keep the magnetic door sensor in a closed state and test for 20 seconds to obtain the normal magnetic attraction range.

Tamper Protection​

  • Rear

Remote setting and testing​

  • It can be turned on or off from RB Link App, it is enabled by default.

Advanced features​

  • Power up enrolling

    When sensor is powered up, it will automatically start paring to the hub nearby

  • Find me

    When enabled, the sensor starts flashing green, which can help identify the sensor from numerous Door Window Sensors.

  • Signal strength detection

    When enabled, senor starts flashing green/orange/red showing the wireless signal strength between the hub at current installation site.

  • Low battery notification

3. RBF wireless technology​

Wireless signal range​

  • Up to 1,400 m in an open space with hub
  • Two-way communication with hub

Frequency bands​

  • 868MHz version: 863 ~ 870 MHz

  • 915MHz version: 902 ~ 928 MHz

    Depends on sales region.

Wireless signal modulation​

  • FSK / DSSS

Encrypted communication​

  • All the data transmitted are protected by AES-CCM encryption with a random key.

Frequency hopping (FHSS)​

  • To prevent radio interference and radio signal interception.

Time division multiple access (TDMA)​

  • With the help of clock synchronization technology, hub will slice time into different division for different RBF wireless devices. In this way, all devices will communicate with hub in a sequence.

4. Electrical Characteristic​

Power Supply​

  • CR123A Battery x 1

Calculated battery life​

  • Up to 5 years (standby mode)

Nrominal Operating Voltage​

  • 3V

Quiescent current consumption at nominal voltage​

  • 35uA

Maximum current consumption at nominal voltage​

  • 73mA

Operating Voltage​

  • From 2.5V to 3.3V

5. General​

Operation Temperature​

  • From -10°Cto +55°C(14°F to 131°F)

Operation Humidity​

  • Up to 90%

Storage Temperature​

  • From -20°C to 60°C (-4°F to 140°F)

Dimension(WxHxD)​

  • Body: 90mm x 21mm x 21mm
  • Magnet: 90mm x 21mm x 21mm

Weight​

  • 71g

6. Compatibility​

  • Operates with all Roombanker Home Security Hubs, RBF repeaters.

7. Complete set​

ProductQuantity
Door Window detector× 1
Magnet× 1
Mounting screw× 4
Plastic wall plug× 4
3M adhesive tape× 2
Terminal to connect a third-party detector× 1
Quick Start Guide× 1

8. Additional information​

Available models​

  • RBSS-MC2-868
  • RBSS-MC2-915

Certifications​

  • CE
  • FCC
  • ROHS

Warranty​

  • Replacement and repair within 24 months of the date of sale. Batteries are not covered under warranty.
