Door Window Sensor(Anti-masking)
Launching shortly. Anticipation awaits!

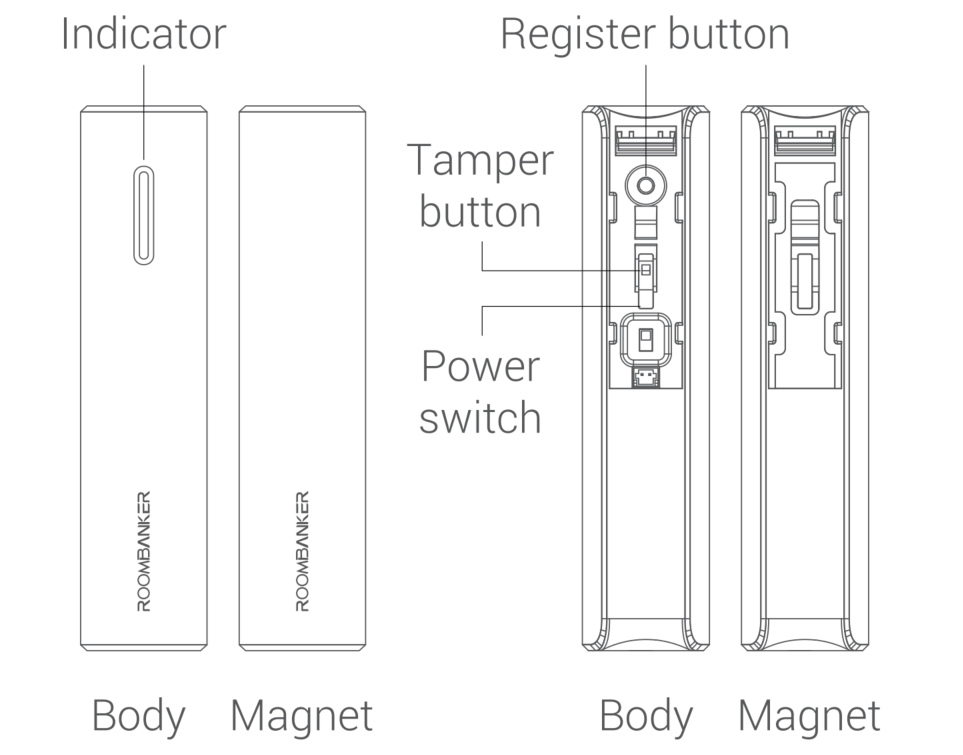

1. Appearance
Launching shortly. Anticipation awaits!

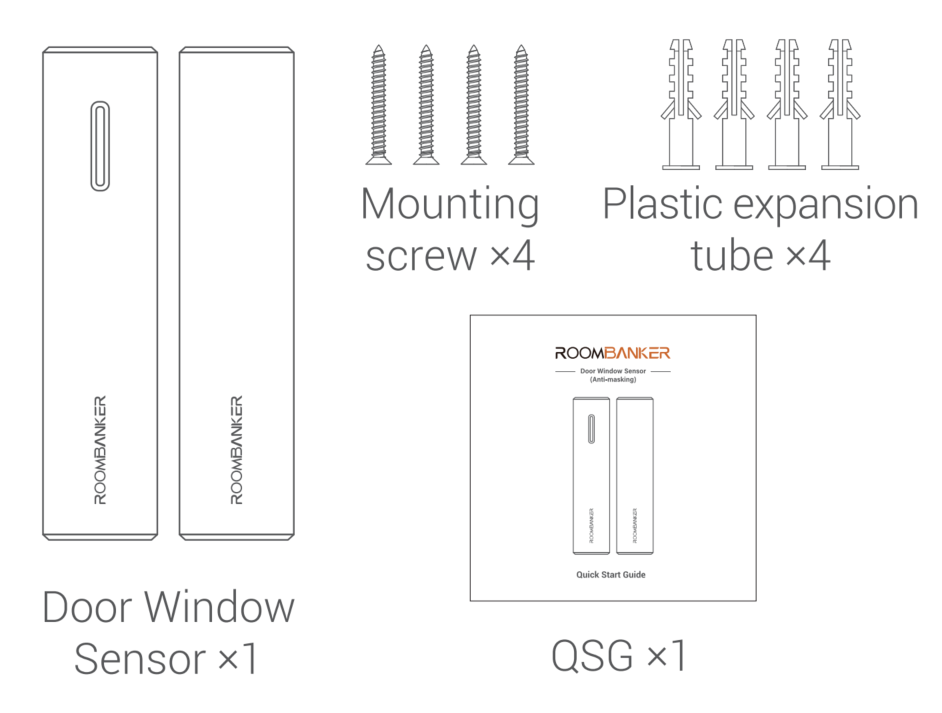

2. Packaging List
Launching shortly. Anticipation awaits!
3. Add Door Window Sensor

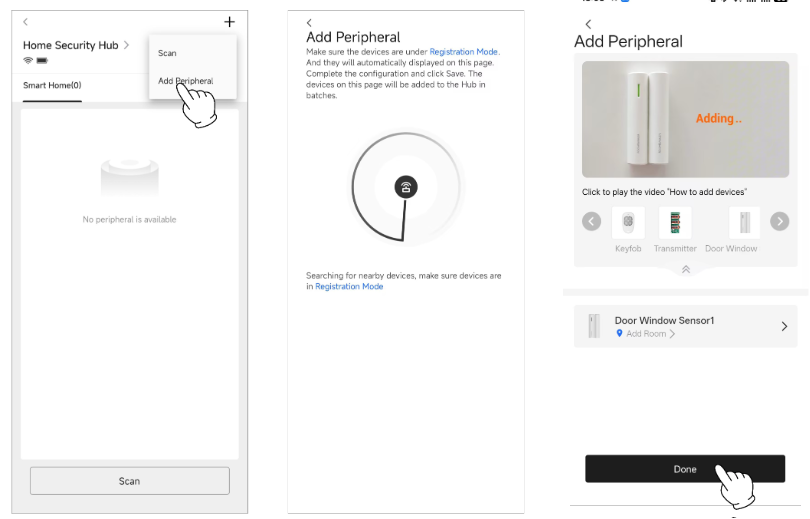

Click Home Security Hub , then click "+" and select "Add peripheral" .
Pull out the insulation strip to power up the device , the green indicator will flash and the device will show in the App.
*Note: If the device does not show in the App and green indicator is off , please press and hold the register button for 5s to try again.
Assign a room and click the "Done" to finish adding.
4. Testing Instruction
Signal Strength Test
Click "
"→ "Signal Strength Test"→ "
" to check signal strength.
5. Installation Instruction
Launching shortly. Anticipation awaits!
6. Device Specifications
| Parameter | Value |
|---|---|
| Model | RBSS-MC2 |
| Detection Method | Reed switch*2 |
| Detection Gap | >17 mm |
| Advanced Features | Digital Processing， Signal Strength detection， Find me |
| Tamper Protection | Rear |
| Transmission Technology | RBF Wireless Transmission |
| Transmission Frequency | 868/915 MHz |
| Transmission Range(Open Space) | 1400 m |
| Advanced Tech | AES-128 Encryption，FHSS，TDMA |
| Standard Battery Life | CR123A Battery x 1， Up to 5 years (standby mode) |
| Operation Temperature | -10°C to 55°C (14 °F to 131 °F) |
| Dimension(W x H x D) | 90 mm x 21 mm x 21 mm(Body) 90 mm x 21 mm x 21 mm(Magnet) |
| Weight | 55 g (No battery) |
| Application Scenario | Indoor |
| Minimum Working Voltage | 2.6V |
