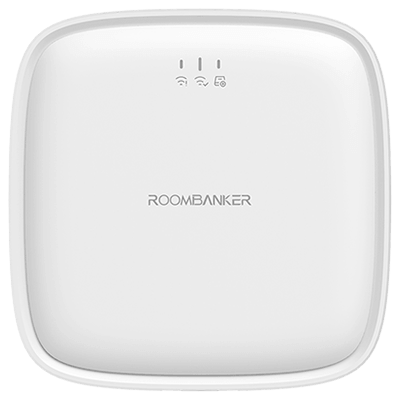

Repeater​

Repeater is a wireless radio signal range extender that boosts the range of all RBF system devices and manages their communication with the hub.
Repeater makes it possible for users to place RBF devices at a considerable distance from the hub, thereby achieving protection for multi-story office buildings, stand-alone structures, and even production plant.

1. Capacity​

Wireless peripheral (including RBF)​

  • 128

2. Features​

Remote setting and testing​

  • Setting and testing from RB Link App

Advanced features​

  • Power up enrolling When device is powered up, it will automatically start paring to the hub nearby
  • Find me When enabled, the device starts flashing green, which can help identify the device from numerous devices.
  • Signal strength detection When enabled, sensor starts flashing green/orange/red showing the wireless signal strength between the hub at current installation site.
  • Low battery notification
  • Temper protection

Indicators​

  • Alarm: Flashing Red
  • Find me: Flashing Green
  • Signal strength:
    • Flashing Green: signal strength is strong, and is recommended to install device here
    • Flashing Orange: signal strength is medium and device can be installed here
    • Flashing Red: signal strength is bad or no signal, and device can not be installed here

3. RBF wireless technology​

Wireless signal range​

  • Up to 2,500m in an open space with hub/devices
  • Two-way communication with hub/devices

Frequency bands​

  • 868MHz version: 863 ~ 870MHz
  • 915MHz version: 902 ~ 928MHz
  • Depends on sales region.

Wireless signal modulation​

  • FSK/DSSS

Encrypted communication​

  • All the data transmitted are protected by AES-CCM encryption with a random key.

Frequency hopping (FHSS)​

  • To prevent radio interference and radio signal interception.

Time division multiple access (TDMA)​

  • With the help of clock synchronization technology, hub will slice time into different division for different RBF wireless devices. In this way, all devices will communicate with hub in a sequence.

4. Electrical characteristic​

Power Supply​

  • USB type-C 5V/2A

Backup power Supply​

  • 2500mAh Li-ion battery

Calculated backup battery life​

  • 35 hours

Nominal Operating Voltage​

  • 3.7V

Quiescent current consumption at nominal voltage​

  • TBD

Maximum current consumption at nominal voltage​

  • TBD

Operating Voltage​

  • From 3.5V to 4.2V

Low battery recovery voltage​

  • 3.9V

5. General​

Operating Temperature​

  • From -10°C to + 45°C(14°F to 113°F)

Operating Humidity​

  • Up to 90%

Storage Temperature​

  • From -20°C to + 60°C(-4°F to 140°F)

Dimensions​

  • 150 x 150 x 37 mm

Weight​

  • 300g

6. Compatibility​

  • Operates with all Roombanker Home Security Hubs, RBF repeaters.

7. Complete set​

ProductQuantity
Repeaterx1
Adapterx1
Quick Start Guidex1

8. Additional information​

Available models​

  • RBGW-RE1-868
  • RBGW-RE1-915

Certifications​

  • CE
  • FCC
  • ROHS

Warranty​

Replacement and repair within 24 months of the date of sale. Batteries are not covered under warranty.
